MISHIMOTO - UPPER INTERCOOLER PIPE KIT, EVO VII-IX
#MMICP-EVO-01UBK
#MMICP-EVO-01UBL
#MMICP-EVO-01URD
PRODUCT FEATURES
- Direct fit for the Evo X
- Lightweight, polished aluminium pipes
- Your choice of black, red, or blue couplers
- Mishimoto Lifetime Warranty
DESCRIPTION

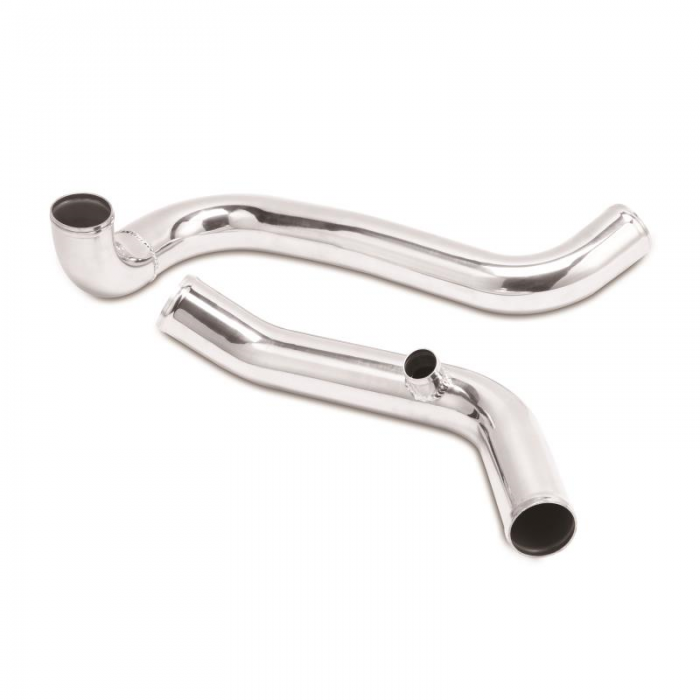

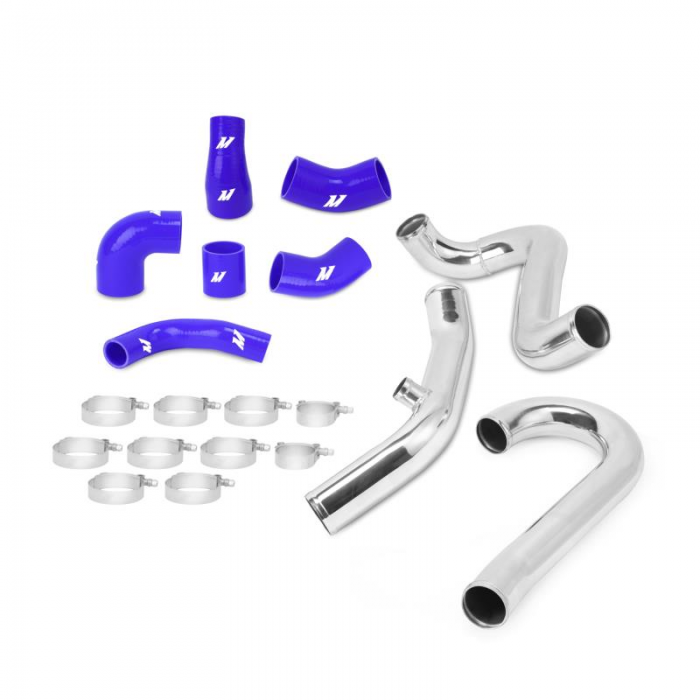

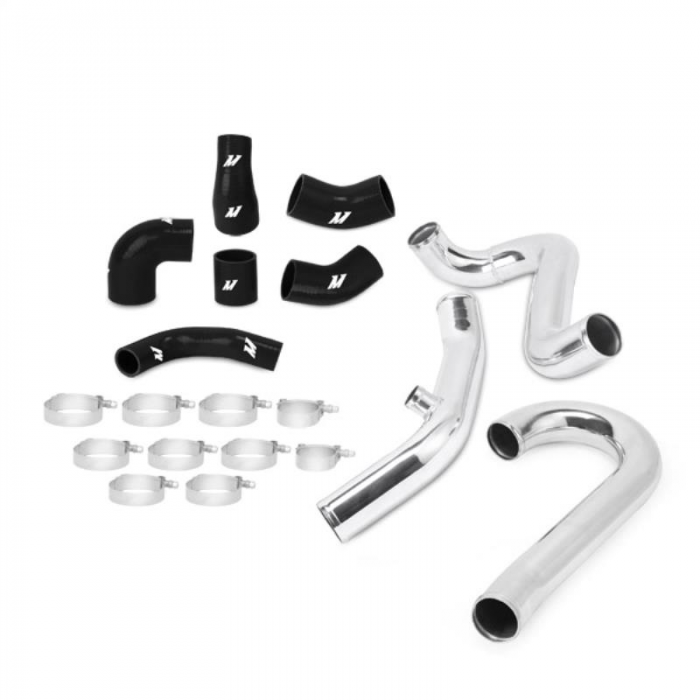

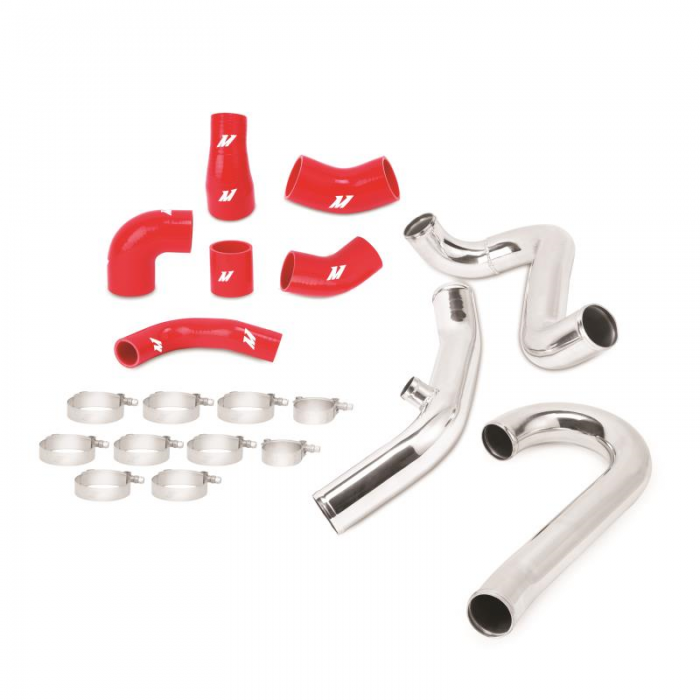

Improve airflow and turbo spool with Mishimoto mandrel bent aluminium intercooler pipes for the Mitsubishi Lancer Evolution 7/8/9. These pipe kits are designed with high-horsepower vehicles in mind and feature bead-rolled pipe ends for prevention of leaks and coupler disconnection. This Mishimoto Evo Intercooler Pipe Kit features silicone couplers that provide increased heat and pressure tolerance compared to the stock rubber counterparts. Whether you have a daily driven Evolution or a stripped and caged time attack car, airflow efficiency is key to optimizing your charge air system. These Mishimoto Evo intercooler pipes are available for purchase separately or as a kit. As with all our products, this kit is guaranteed by the Mishimoto Lifetime Warranty
VEHICLE SPECS
| MAKE | Mitsubishi |
| FITS | 2001–2007 Lancer Evolution 7/8/9 GSR 2005–2007 Lancer Evolution 8/9 MR |
PRODUCT SPECS
| INSTALLATION TORQUE SPECS | 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M). |

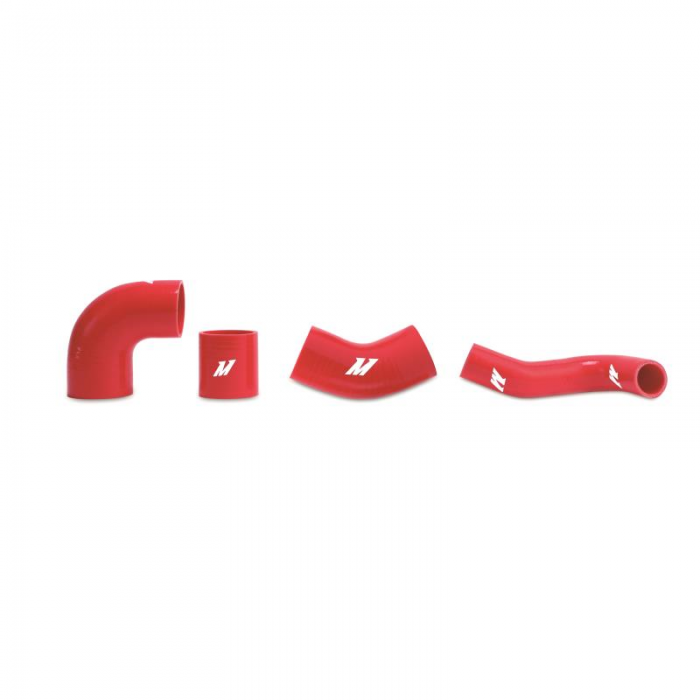

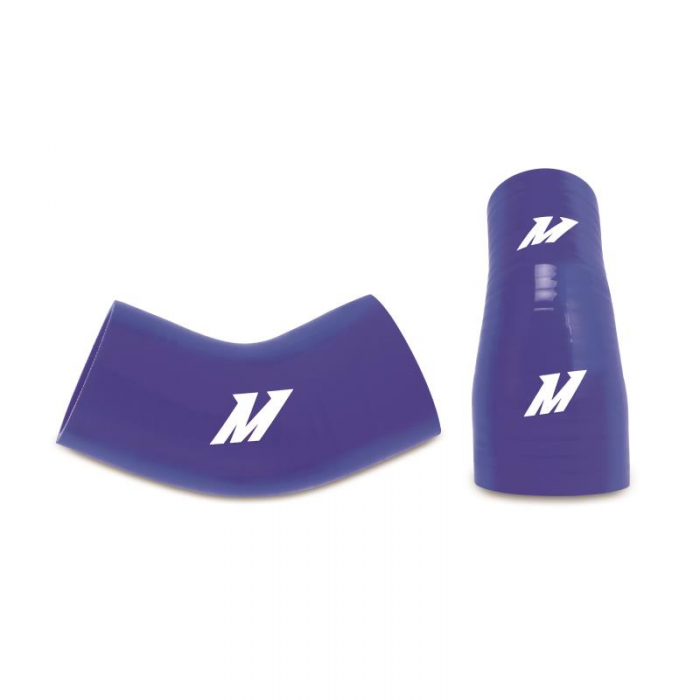

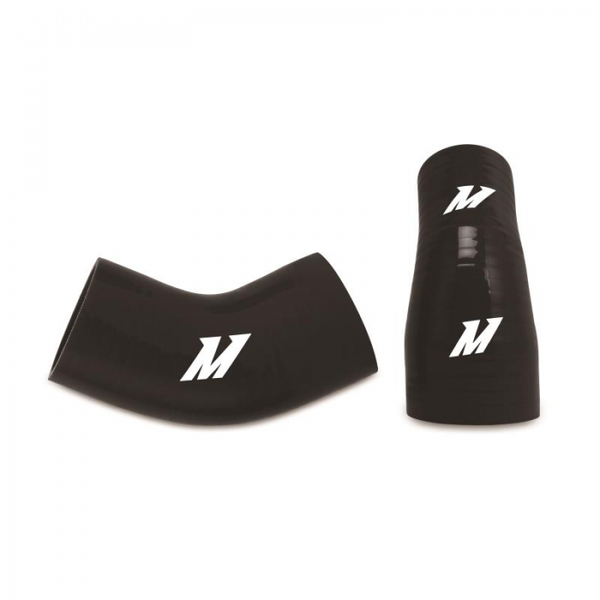

| SILICONE COUPLERS | Coupler 1: I.D. – 2.83" / 2.44" / O.D. – 3.00" / 2.83" Coupler 2: I.D. – 2.44" / O.D. – 2.83" Coupler 3: I.D. – 2.44" / O.D. – 2.83" |

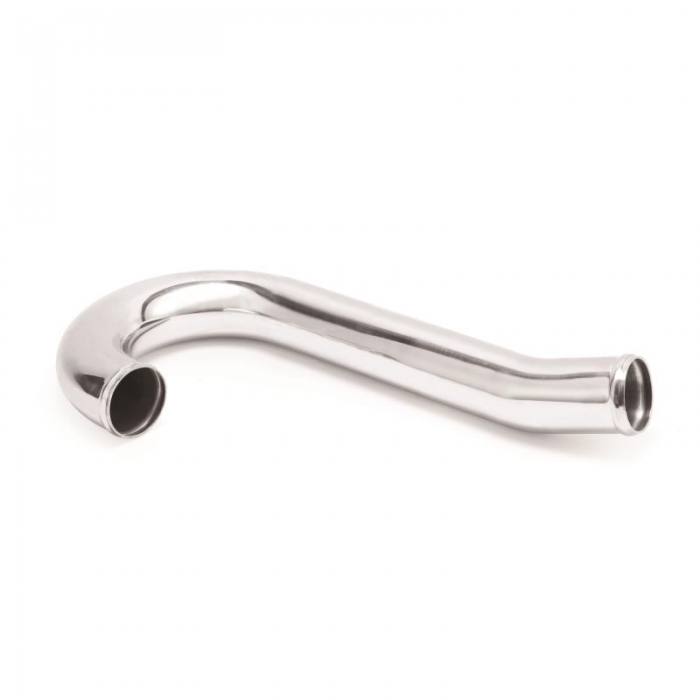

| PIPE DIAMETER | Upper Diameter I.D. - 2.375" Upper Diameter O.D. - 2.50" |
| CONSTANT TENSION T-BOLT CLAMPS SPECS | (5) 2.75" T-bolt Clamps (1) 3" T-bolt Clamp |
