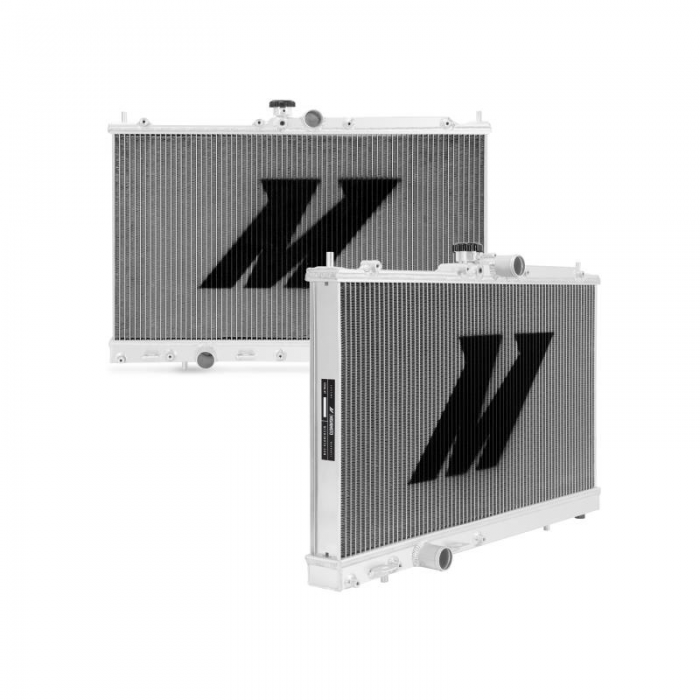

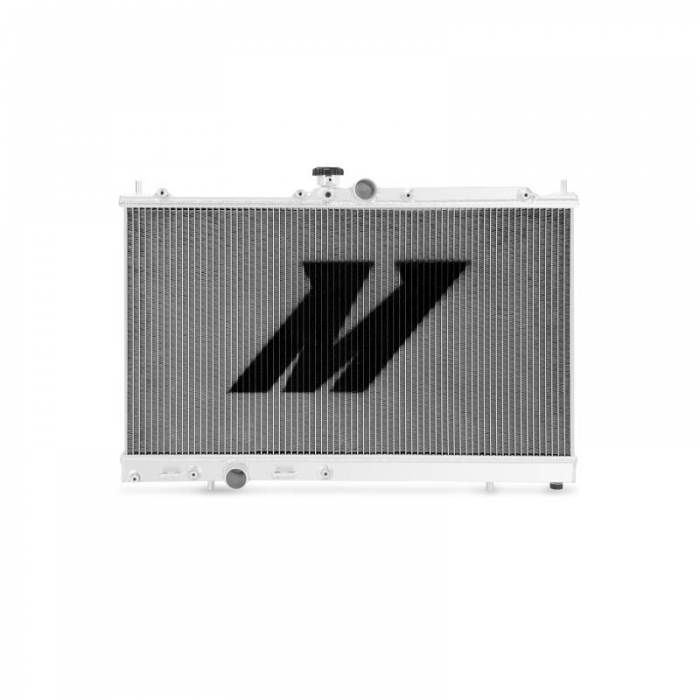

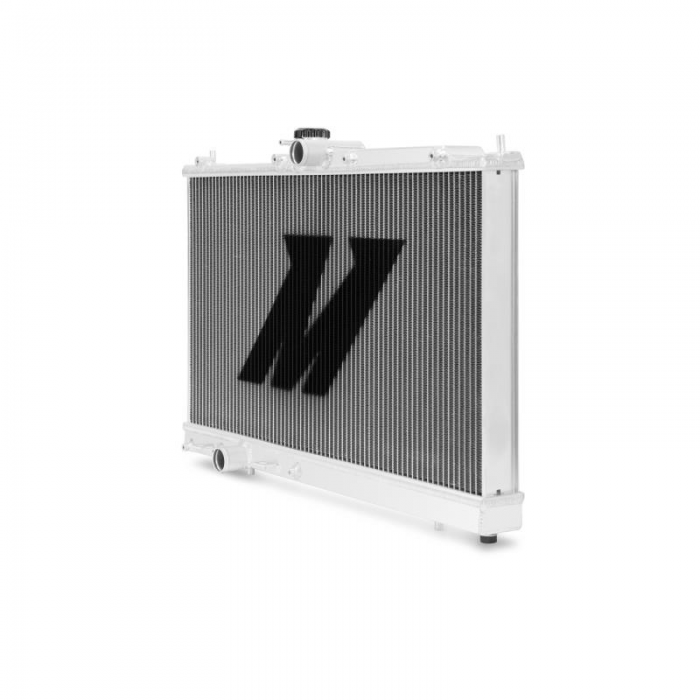

MISHIMOTO - PERFORMANCE ALUMINIUM RADIATOR, EVO VII-IX
- Full-aluminium construction provides increased heat and pressure tolerance, improved heat dissipation, increased durability, and improved cooling efficiency
- Manufactured with robust TIG-welded end tanks for improved structural rigidity
- Constructed with a 100% brazed aluminium core for maximum reliability
- Substantial core thickness provides increased coolant capacity, which directly results in improved cooling efficiency and engine temperature reduction
- Engineered to original equipment specifications for the 2001–2007 Mitsubishi Lancer Evolution 7/8/9
- Mishimoto Lifetime Warranty ensures product quality and craftsmanship
Having trouble keeping coolant temperatures under control in your stock or modified Evo? Whether you are making passes at the strip or boosting up the local hill climb course, retaining optimal coolant temperatures is key to preserving the life of your engine. The Mishimoto Lancer Evolution Performance aluminium Radiator is an ideal upgrade for the stock radiator with plastic end tanks. The Mishimoto radiator features a full-aluminium construction, which provides increased heat and pressure tolerance, improved heat dissipation, increased durability, and improved cooling efficiency. Mishimoto radiators are constructed using a 100% brazed aluminium core with robust TIG-welded end tanks, which result in maximum reliability, superior structural rigidity, and consistent performance in even the most demanding environments.
This radiator is engineered to retain stock fitment for the Mitsubishi Evolution 7, 8, and 9 for hassle-free bolt-in fitment. With a core thickness of nearly 2 inches, this radiator dwarfs the factory heat exchanger and is perfect for use with vehicles utilizing upgraded turbochargers or for stock vehicles in need of a reliable replacement. This performance radiator includes a Mishimoto 1.3 Bar High-Pressure Radiator Cap, which effectively raises the boiling point of coolant to create a safer and more efficient system. This radiator also includes a magnetic drain plug with dowty seal, which removes circulating metal fragments from the cooling system, providing further engine protection. As with all our products, this aluminium radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

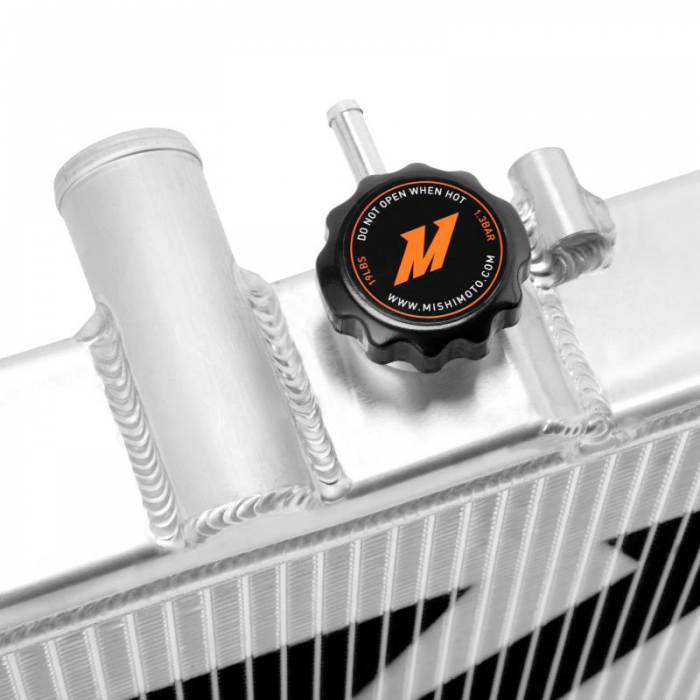

Mishimoto Radiator Cap

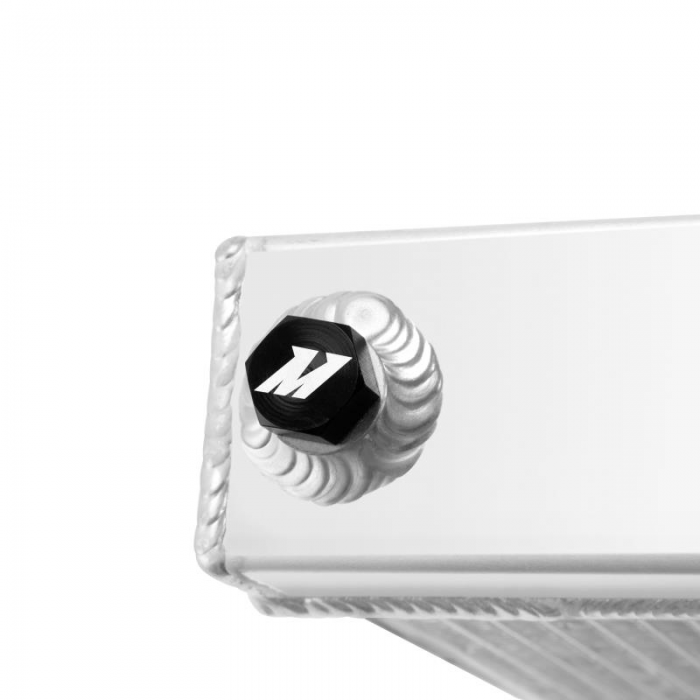

Magnetic Drain Plug
3.175mm NPT Plug
Mishimoto Lifetime Warranty
This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
|DRAIN PLUG LENGTH||0.047
|TANK WALL THICKNESS||0.08
|OVERALL LENGTH (IN)||19.50
|OVERALL HEIGHT (IN)||28.20
|OVERALL WIDTH (IN)||2.47
