MISHIMOTO - INTERCOOLER PIPE KIT, EVO VII-IX
#MMICP-EVO-01BK
#MMICP-EVO-01BL
#MMICP-EVO-01RD
PRODUCT FEATURES
- Direct fit for the Mitsubishi Lancer Evolution 7/8/9

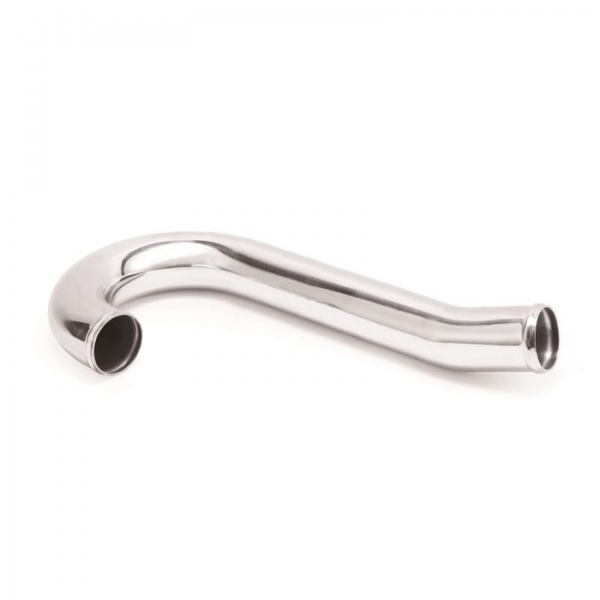

- Lightweight, mandrel bent, polished aluminium pipes
- Eliminates restrictive bends found in the stock piping, providing more efficient airflow
- Improves turbocharger spool and provides support for high-horsepower vehicles
- Bead-rolled ends to prevent boost leaks and coupler disconnection

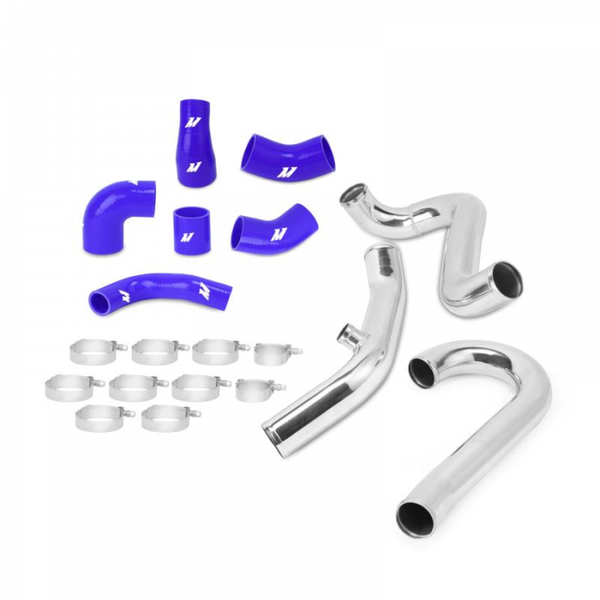

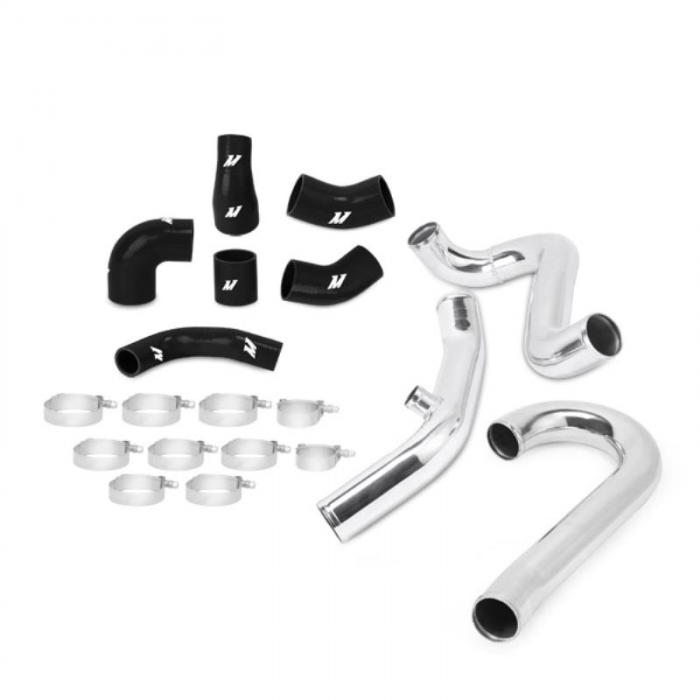

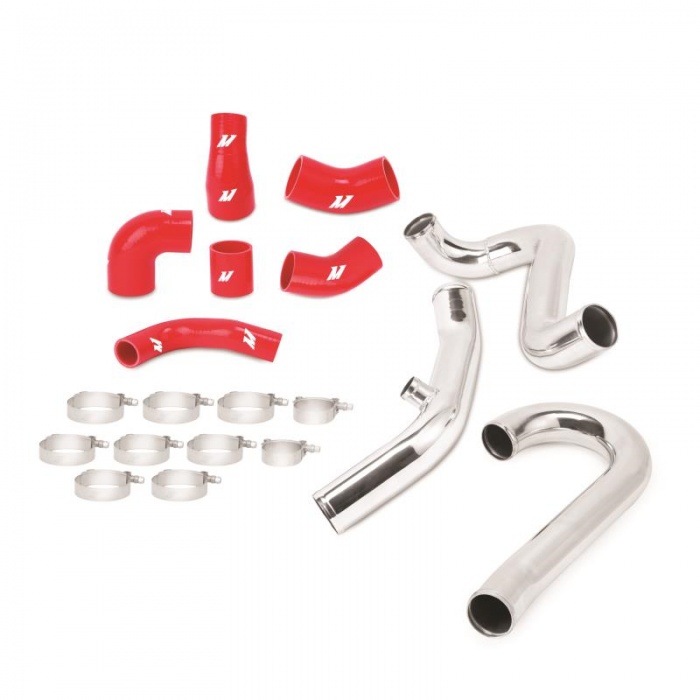

- Black, blue, or red silicone couplers provide increased heat and pressure tolerance
- Mishimoto Lifetime Warranty
- CARB EO #: D-759
DESCRIPTION
Improve airflow and turbo spool with Mishimoto mandrel bent aluminium intercooler pipes for the Mitsubishi Lancer Evolution 7/8/9. These pipe kits are designed with high-horsepower vehicles in mind and feature bead-rolled pipe ends for prevention of leaks and coupler disconnection. This Mishimoto Evo Intercooler Pipe Kit features silicone couplers that provide increased heat and pressure tolerance compared to the stock rubber counterparts. Whether you have a daily driven Evolution or a stripped and caged time attack car, airflow efficiency is key to optimizing your charge air system. These Mishimoto Evo intercooler pipes are available for purchase separately or as a kit. As with all our products, this kit is guaranteed by the Mishimoto Lifetime Warranty
NOTES

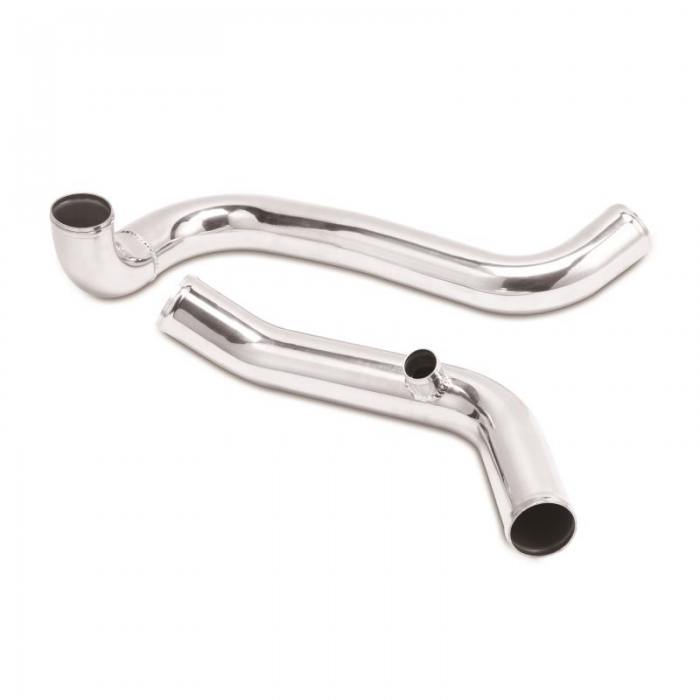

The upper intercooler pipes are not designed to work with the stock airbox; an aftermarket 0Open Element0 air filter is required to use with these upper intercooler pipes.
VEHICLE SPECS
MAKE | Mitsubishi |
FITS | 2001–2007 Lancer Evolution 7/8/9 GSR 2005–2007 Lancer Evolution 8/9 MR |
PRODUCT SPECS
INSTALLATION TORQUE SPECS | 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M). |

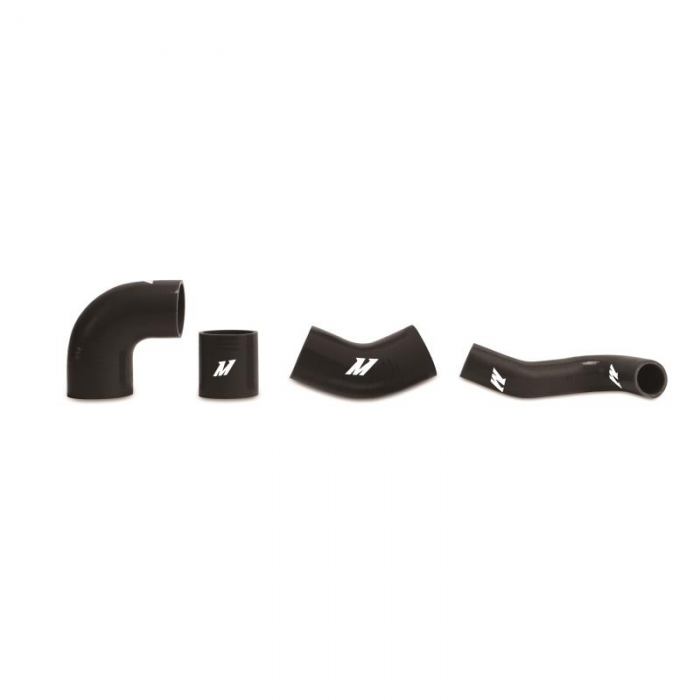

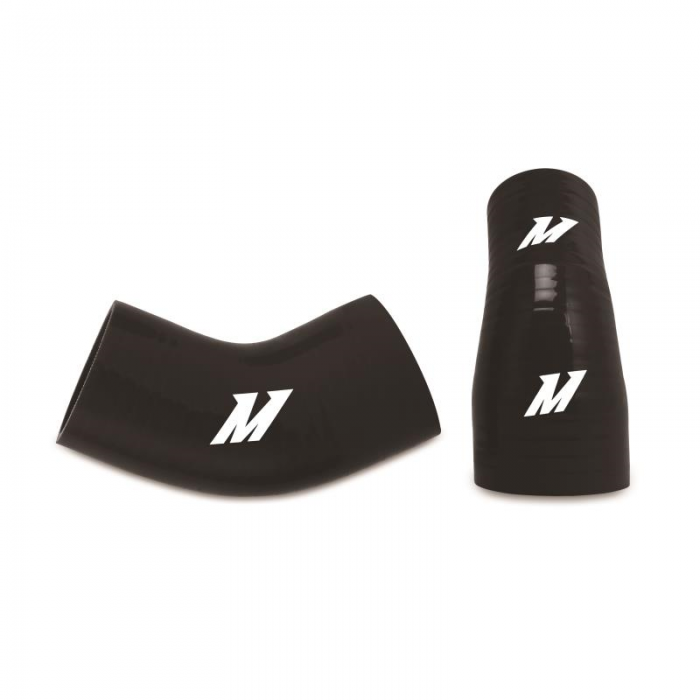

SILICONE COUPLERS | Coupler 1: I.D. – 2.83" / 2.44" / O.D. – 3.00" / 2.83" Coupler 2: I.D. – 2.44" / O.D. – 2.83" Coupler 3: I.D. – 2.44" / O.D. – 2.83" |
PIPE DIAMETER | Lower Diameter I.D. - 60.325 Lower Diamter O.D. - 63.5 Upper Diameter I.D. - 60.325 Upper Diameter 60.325 O.D. - 2.50 |
CONSTANT TENSION T-BOLT CLAMPS SPECS | (8) 2.75" T-bolt Clamps (1) 2" T-Bolt Clamp (1) 3" T-bolt Clamp |
